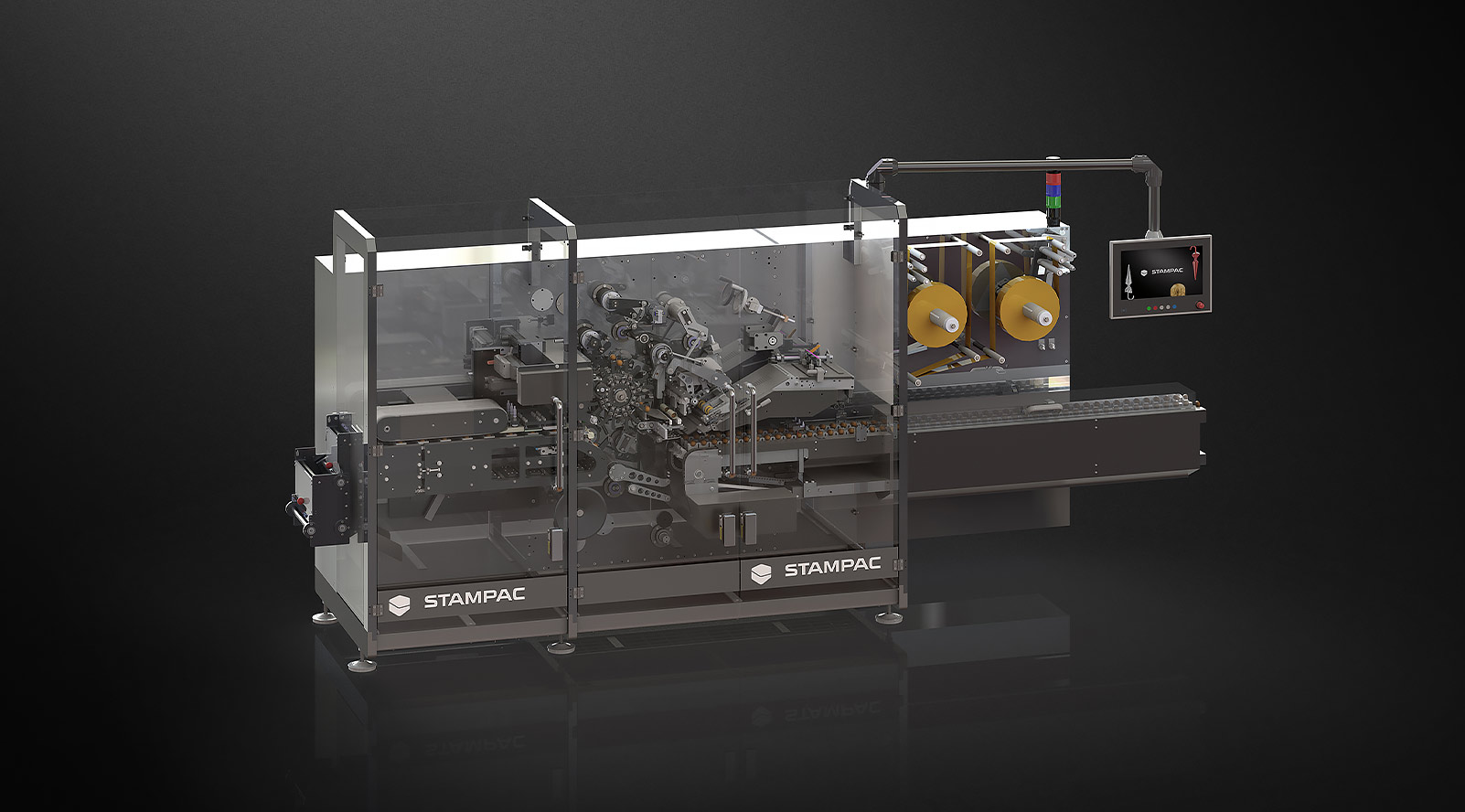

LUP-ND
![LUP-ND](https://www.stampac.com/img/suesswaren/lup-nd/lup-nd-1.jpg)
Data & facts
A highly flexible all-rounder – universally applicable due to many exchangeable modules to produce a high quality packaging at high speed.
Special features
- Switch to different packaging materials right on the touch panel
- Electrically coded and tamper-proof – magnetic safety switches on the main doors
- To minimise space requirements, a left and right-hand machine can be operated simultaneously by one operator
- Integrated tele-service router with the greatest possible data security (encrypted communication not only via software, but also on the hardware side)
- Optional: Login to the machine with an RFID chip – customised user interfaces and settings are loaded automatically
- Optional: Current performance data, remote maintenance or batch size allocation can be queried via an optional OPC UA interface
Wrapping types
All popular folding types, including double twist and Sacchetto, thread screwed in or fastened with adhesive stripes, many special folds on request.
more
Exchange modules / folding modules for grounding
- Brush folding
- CH-folding
- Envelope folding
- Feed folding
Replacement modules for shutter (gearwheel)
- Twist head (double or one side)
- Thread layer (thread twisted or twisted)
- Endfold with 4 separately driven folders
Feed modules
- Turntables with a camera system align up to 550 products per minute fully automatically with integrated and space-saving pick-and-place belt or chain feed (both also 90°)
- Sacchetto feeder
Jam free bad feed for ground article
- We are aviable for further information
Outfeed modules
- Dispensing on a belt or pocket conveyor for orderly further processing
- Pocket conveyor for smoothing silver foil (top and bottom movement)
Format range
Length | 30 – 240 mm |
Width | 15 – 40 mm |
Height | 6 – 40 mm |
Ø | 20 – 45 mm |
Performance
single lane | up to 310 products / minute |
double lane | up to 550 products / minute |
Weight
approx. 1,900 kg |
Types of packaging
![Twist folding](https://www.stampac.com/img/produktbeispiele/twistfaltung-1.jpg)
Twist folding
![Double twist folding](https://www.stampac.com/img/produktbeispiele/doppeltwistfaltung-2.jpg)
Double twist folding
![Chocolate bars](https://www.stampac.com/img/produktbeispiele/riegel-tafelntwo-1.jpg)
Chocolate bars
![Chocolate bar](https://www.stampac.com/img/produktbeispiele/riegel-tafeln-1.jpg)
Chocolate bar
![Bottom folding](https://www.stampac.com/img/produktbeispiele/bodenfaltung-3.jpg)
Bottom folding
![Bottom folding](https://www.stampac.com/img/produktbeispiele/bodenfaltung-1.jpg)
Bottom folding
![Bottom folding](https://www.stampac.com/img/produktbeispiele/bodenfaltung-2.jpg)
Bottom folding
![Bottom folding](https://www.stampac.com/img/produktbeispiele/bodenfaltung-4.jpg)
Bottom folding
![Bottom folding](https://www.stampac.com/img/produktbeispiele/bodenfaltung-10.jpg)
Bottom folding
![Head/front folding](https://www.stampac.com/img/produktbeispiele/stirnfaltung-1.jpg)
Head/front folding
![Head/front folding](https://www.stampac.com/img/produktbeispiele/stirnfaltung-2.jpg)
Head/front folding
![Thread](https://www.stampac.com/img/produktbeispiele/faden-1.jpg)
Thread
![Special folding](https://www.stampac.com/img/produktbeispiele/sonderfaltung-1.jpg)
Special folding
![Beetles](https://www.stampac.com/img/produktbeispiele/kaefer-1.jpg)
Beetles
![Papier Twistfaltung](https://www.stampac.com/img/suesswaren/leko-lup-eco/papier-twistfaltung.jpg)
Paper twist folding with the LEKO-LUP eco
Have we already mentioned that the LEKO-LUP is a real multi-talent? Now it even packs in ecological materials such as paper. And if you are a proud owner of the LEKO-LUP, we are happy to modify the machine for you.
